Heating Things Up

The Heat Machine

In the previous chapter, we explored the art of cooling. The careful science of moving heat out of buildings and processes and rejecting it to the atmosphere through evaporation. The chiller lifts heat. The cooling tower exhales it. Every step obeys thermodynamics.

Now we turn the process around.

Boilers do not remove heat. They inject it. They take the chemical energy stored in fuel and drive it directly into water. The goal is not to move heat away from something, but to move it into something: the Hydrogen-Bond Network itself.

In the Hero of Heat Transfer, we explored what that costs. Water absorbs sensible heat grudgingly, resisting temperature change with a specific heat of 1.0 BTU/lb·°F, higher than almost any common substance. And when water finally reaches its boiling point, it demands an enormous additional investment: roughly 970 BTU per pound to break the hydrogen bonds and transform liquid into vapor.

Cooling systems exploit that resistance. They use water’s stubbornness to absorb and transport heat efficiently.

Boilers exploit the payoff on the other side. When steam condenses back into liquid water at a process heat exchanger or an air handler, it releases that 970 BTU per pound instantly, delivering enormous energy with no moving parts and no combustion at the point of use.

This is why we make steam.

The Power of Steam

Steam is the most efficient medium for delivering large quantities of heat over long distances.

That claim deserves the same scrutiny we gave chillers in the previous chapter. Why not circulate hot water? Why not heat air directly? Why go through the enormous expense of boiling water, piping vapor across a campus, and collecting the condensate?

The answer is latent heat.

Hot water carries sensible heat – roughly 1 BTU per pound per degree of temperature difference. To deliver 1,000 BTU, you need to circulate 50 pounds of water through a 20°F drop. That is a lot of mass in motion, requiring large pipes and significant pumping energy.

Steam carries latent heat – roughly 970 BTU per pound, released the instant it condenses. One pound of steam delivers nearly a thousand BTU without any temperature drop at all. The energy is stored in the phase, not the temperature. Pipes can be smaller. Pumping energy is negligible because steam moves under its own pressure. And the condensate that forms after the steam gives up its energy is hot, clean, and ready to be returned to the boiler.

For a hospital campus with miles of corridors to heat, for a university with dozens of buildings, for a food processing plant that needs precise, clean heat delivered to kettles and sterilizers – steam is not merely convenient. It is the only practical answer.

But making steam is violent work.

When water boils at atmospheric pressure, it expands roughly 1,600 times its liquid volume.

Imagine a single water bottle – about one pound of liquid. Now imagine that pound of water instantly expanding into nearly 27 cubic feet of steam, enough to fill a large refrigerator. That is not a metaphor. That is the physical reality of the phase transition from liquid to gas. It also explains why steam velocity is so high – as the expansion enters the header, steam takes off.

Inside a boiler operating under pressure, this expansion is partially constrained. Higher-pressure steam occupies less volume per pound and exists at a higher saturation temperature. The steam becomes a denser, hotter, more energetic fluid – and the violence of the boiling process is no less real.

Large industrial boilers generate tens of thousands of pounds of steam per hour. What looks serene through the sight glass hides a rampaging tempest inside – violent boiling, bubble formation, turbulent convection, and constant phase-boundary disruption.

Managing this process safely requires more than a burner and a pressure vessel. It requires a system.

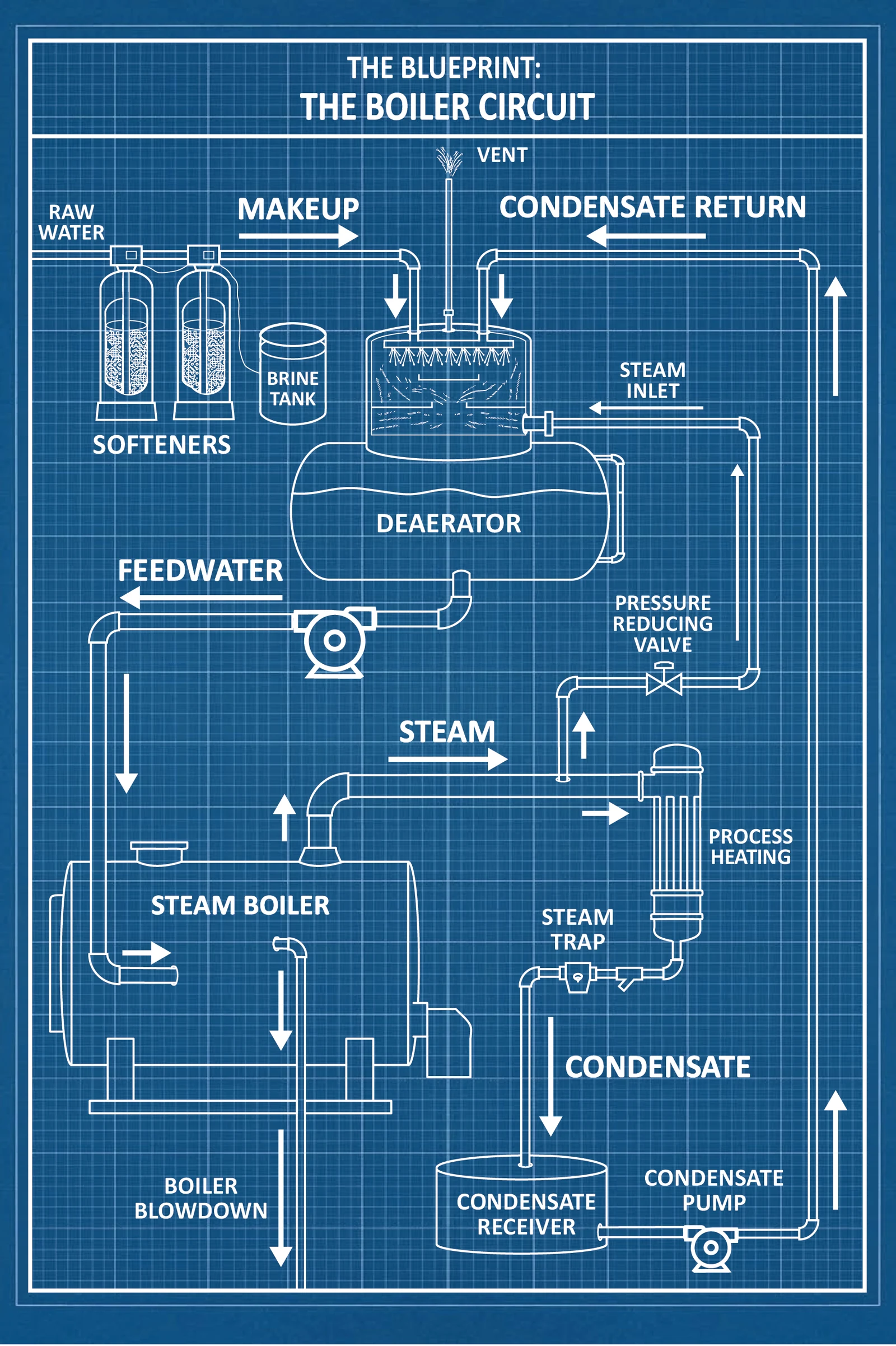

The Boiler Circuit

A boiler system is an interdependent loop: a circuit in which water is heated, converted to steam, delivered to the point of use, condensed, and returned to be heated again.

Every component in this circuit exists to solve a specific problem that the previous component creates. Understanding why each one is necessary is the difference between managing a boiler and managing a boiler system.

The circuit has four links:

Pretreatment removes the dissolved minerals that would destroy the boiler’s heat-transfer surfaces.

The feedwater tank and deaerator remove the dissolved oxygen that would corrode everything downstream.

The boiler vessel concentrates whatever remains, and must be managed to prevent carryover.

The steam-condensate loop delivers energy and returns the water, but must be protected from the corrosive byproducts of its own chemistry.

We will walk each link in order, because each one’s failure mode explains the next one’s purpose.

\

Pretreatment: Removing Hardness

Boilers cannot tolerate hardness.

This is not a guideline. It is a physical constraint. For most boilers, effective feedwater hardness is treated as ‘non-detect’ – typically <0.5–1.0 mg/L as CaCO₃ depending on pressure and design.

The reason traces directly back to the Scale chapter. Calcium carbonate exhibits inverse solubility: its tendency to precipitate increases with temperature. In a cooling tower operating at 95°F, this is a manageable concern. In a boiler operating at 350°F or higher, it is a certainty. Any calcium that enters the boiler will find carbonate, and they will form scale on the hottest surfaces in the system – the tubes.

Those tubes are the boiler’s entire reason for existing. They are the heat-transfer surfaces where combustion energy passes through metal and into water. Even a thin layer of calcium carbonate scale – 1/32 of an inch, roughly the thickness of a credit card – is enough to reduce boiler efficiency by 2%. On a large boiler burning 165 billion BTU per year, that 2% represents about 3,300 MMBTU of wasted fuel annually. At $6/MMBTU, that is almost $20,000 per year. And that is the optimistic scenario. At greater thicknesses, the insulating effect of scale causes the tube metal itself to overheat, leading to distortion, fatigue cracking, and catastrophic tube failure.

This is why every boiler system begins with a softener.

Ion Exchange: The Swap

Water softeners use ion exchange to remove calcium and magnesium before the water ever reaches the boiler.

The process is elegant. Inside the softener tank, thousands of small resin beads carry a fixed negative charge. These beads are coated with sodium ions – weakly held, singly charged cations that occupy the resin’s exchange sites.

When hard water flows through the tank, the calcium and magnesium ions – doubly charged and more strongly attracted to the resin – displace the sodium. The sodium releases into the water. The hardness binds to the resin. The water leaves the softener with sodium in place of calcium and magnesium, and with very little scaling potential.

When the resin is exhausted, a concentrated sodium chloride solution (roughly 26%, or 260,000 ppm) is flushed through the tank. The sheer concentration of sodium overwhelms the resin, forcing even the doubly-charged calcium and magnesium off the exchange sites. The resin is recharged and ready for the next service cycle.

It is important to understand that softeners are not perfect. Some hardness always slips through. A well-designed, properly maintained softener should achieve less than 0.5 mg/L total hardness – the detection limit of most field test kits. Service reports should always report hardness as <0.5 mg/L as Calcium Carbonate, never as zero. If your customer opens the boiler and finds any hardness deposit, the conversation is much simpler when your records show you never claimed perfection.

The Brine Tank

The single most common reason softeners fail is an empty brine tank.

This is worth its own paragraph because it is the single most common reason water treaters get fired from accounts. The brine tank is typically a plastic vessel sitting next to the softener, filled with salt pellets and water. If the salt runs out, the regeneration cycle runs with dilute brine. The resin does not fully regenerate. Hardness breaks through on the next service cycle and floods the feedwater.

Whenever you are on site, check the brine tank. It may not be your responsibility to fill it, but it is absolutely your responsibility to document when it is empty and to explain – clearly, in writing – what happens next if it stays that way.

The Feedwater Tank: Removing Oxygen

As water temperature rises, two opposing forces compete.

First, gas solubility drops. Henry’s Law dictates that dissolved gases become less soluble as temperature increases. Molecular motion accelerates, the Hydrogen-Bond Network loosens, and gas molecules escape more readily. At 140°F, roughly half the dissolved oxygen has already left the solution – down from about 8 mg/L at room temperature to approximately 4 mg/L.

Second, corrosion rates accelerate. As a general rule, corrosion rates double for every 18°F (10°C) increase in temperature. The oxygen that remains is reacting far more aggressively with the metal surfaces it contacts.

This creates a dangerous crossover zone. At 140°F, you have half the oxygen but almost fifteen times the reaction rate. The corrosion potential is not merely maintained – it is amplified. The feedwater is hot enough to be aggressive but not hot enough to be safe.

The paradox resolves only at the boiling point. At 212°F at sea level, the kinetic energy of water molecules is sufficient to drive dissolved oxygen to near zero (less than ~10 parts per billion). At that point, the primary oxidant has been effectively removed, and the corrosion threat changes dramatically.

This is why deaerators exist.

The Deaerator: The Mechanical Workhorse

A deaerator is a specialized vessel that uses live steam to heat incoming feedwater to its boiling point. By scrubbing the water with steam, breaking surface tension, and maximizing the contact area between water and heat, the deaerator drives dissolved gases out of solution. The liberated oxygen, along with carbon dioxide and other noncondensable gases, is vented through the top of the vessel and safely exhausted from the system.

A properly operating deaerator delivers feedwater to the boiler at dissolved oxygen concentrations below ~10 ppb. This is a reduction of about 99.9% from the roughly 8 ppm present in cold makeup water.

The deaerator also serves as the feedwater storage tank. It provides a reservoir of hot, deaerated water that the boiler feed pumps draw from continuously. If the deaerator runs cold (from insufficient steam supply, excessive cold makeup, or lost condensate return) dissolved oxygen climbs, and the entire system downstream is at risk.

Oxygen Scavengers: The Chemical Insurance

Even a properly functioning deaerator does not achieve absolute zero oxygen. Small traces remain. And in the feedwater piping between the deaerator and the boiler, any ingress can reintroduce oxygen.

Oxygen scavengers provide chemical insurance. They are not designed to do the heavy lifting. They are designed to clean up the residual that mechanical deaeration leaves behind.

For low-pressure boilers below roughly 900 psi, the most common scavenger is sodium sulfite. It reacts directly with dissolved oxygen to form sodium sulfate:

2 Na₂SO₃ + O₂ → 2 Na₂SO₄

Sulfite is cheap, fast-acting, and easy to test in the field. Its downside is that it adds dissolved solids to the boiler water which increases conductivity and may accelerate the rate of blowdown needed to maintain chemistry limits.

For high-pressure boilers above 900 psi, sulfite begins to thermally decompose, producing sulfur dioxide and hydrogen sulfide, both corrosive. At these pressures, the industry has moved to alternatives: carbohydrazide, DEHA, erythorbate, and others. The original high-pressure scavenger, hydrazine, has been largely phased out due to its classification as a suspected carcinogen, though its chemistry was elegant. It produced only nitrogen gas and water.

Regardless of which scavenger is used, the principle is the same: mechanical deaeration does the heavy lifting, and chemistry handles the remainder. When the mechanical side fails, the deaerator runs cold, condensate return drops, makeup volume surges, no amount of chemical can compensate. Scavengers cannot solve mechanical problems. They can only mask them, temporarily and expensively, while the damage accumulates.

Inside the Boiler

Once water enters the boiler, it enters a controlled extreme.

The tubes are the critical interface. On one side, combustion gases at 1,500°F or higher. On the other side, water must absorb that energy without allowing the tube metal to overheat. The water’s job is to keep the metal cool by continuously absorbing heat and carrying it away through circulation. Scale, deposits, or anything that insulates the tube surface from the water disrupts this exchange and allows the metal temperature to climb toward failure.

This is why pretreatment matters so much. The boiler itself has no way to reject what the feedwater delivers. Every ion that enters the boiler stays in the boiler, concentrating steadily as pure steam is drawn off and dissolved solids are left behind.

Concentration and Cycles

Boiler concentration follows the same logic we explored in cooling towers, but at a different scale.

As steam leaves the boiler, it carries almost no dissolved solids. The minerals that arrived in the feedwater remain in the liquid phase. With each pound of steam produced, the concentration of dissolved solids in the remaining boiler water increases.

Cycles of Concentration ≈ $\frac{Boiler\ Conductivity}{Feedwater\ Conductivity}$

In cooling towers, we typically operate between 3 and 8 cycles. In boilers, the numbers are dramatically different. A low-pressure boiler receiving well-softened, high-quality feedwater with significant condensate return might operate at 30 to 50 cycles, potentially higher.

These high cycle counts are possible because pretreatment has already removed the most dangerous scaling species. What remains (primarily sodium salts and the products of our own treatment chemistry) is far more soluble than the calcium and magnesium that were stripped by the softener.

But soluble does not mean limitless. As cycles increase, total dissolved solids rise, alkalinity climbs, and silica accumulates. Each of these has an upper boundary established by ASME and ABMA guidelines. These limits exist due to the risk of carryover.

Carryover: When Boiler Water Escapes with the Steam

Carryover is the contamination of steam with liquid boiler water, and everything dissolved in it.

Steam is supposed to leave the boiler clean. When it carries water droplets along with it, those droplets contain the full concentration of dissolved and suspended solids present in the boiler. Those solids deposit in the steam header, on turbine blades, inside control valves, and across heat-exchange surfaces that were designed to see only pure steam.

Steam travels at 60 to 100 miles per hour. A water droplet hitting a turbine blade at that velocity hits like a bullet. Even in heating systems without turbines, carryover deposits salts on valve seats, fouls steam traps, and creates the banging known as water hammer: the violent impact of liquid slugs moving at steam velocity through elbows and restrictions.

Carryover occurs through two mechanisms.

Priming: Mechanical Carryover

Priming occurs when the boiler water level physically surges and liquid water is pulled or splashed into the steam outlet. It is commonly caused by a sudden increase in steam demand, a failed level controller, or a rapid load swing.

We fought with operators at a school district for over a year about water hammer that they blamed on our chemistry. What they eventually discovered was that every winter morning, when teachers arrived and turned up their thermostats simultaneously, the sudden steam demand caused the boiler to fire hard from a low load. The result was violent turbulence and surging that pulled water into the steam header. Our chemistry was within every published guideline. The problem was mechanical.

Foaming: Chemical Carryover

Foaming occurs when dissolved solids, alkalinity, or organic contaminants reach sufficient concentration and stabilize the bubbles forming at the boiling surface. Instead of breaking cleanly, bubbles persist. Foam builds on the water surface and is swept into the steam outlet.

Foaming is why we blow down. Blowdown is the controlled discharge of concentrated boiler water, replaced by fresher feedwater. It keeps dissolved solids within the range where bubble behavior remains predictable and foam cannot form.

Operating below the ASME/ABMA guidelines for TDS and alkalinity is the primary defense against foaming. Operating well below those limits, however, wastes water, fuel, and chemistry because lower cycles mean more blowdown and more cold makeup that must be heated. The target is not the lowest possible concentration. It is the highest safe concentration.

The Steam-Condensate Loop: Liquid Gold

The moment steam leaves the boiler, it begins losing energy.

The insulation on the steam header slows the loss but does not stop it. At every point of use (air handlers, process heat exchangers, sterilizers, kettles) the steam gives up its latent heat and condenses back into liquid water. This condensate collects in steam traps and is returned to the feedwater system.

Condensate is called liquid gold for two reasons, and both of them matter.

First, it is hot. Condensate typically returns at 160°F or higher. Every pound of hot condensate returned to the feedwater tank is a pound that does not need to be heated from ambient temperature. At roughly 130 BTU of sensible heat already invested per pound, the energy savings are immediate and substantial.

Second, it is clean. Condensate has already passed through the boiler and left its dissolved solids behind. Apart from dissolved gases and treatment chemistry, it is nearly pure water. Returning it to the feedwater tank dilutes the incoming makeup, lowers the feedwater conductivity, and allows the boiler to operate at higher cycles of concentration. This in turn reduces blowdown, saves water, and improves fuel efficiency.

A system returning 90% of its condensate operates in a fundamentally different regime than one returning 40%. The feedwater is hotter, cleaner, and cheaper to treat. The boiler cycles higher. The fuel bill drops. The chemistry program works within its design window.

Losing condensate reverses all of these advantages simultaneously.

Carbonic Acid: The Threat

Condensate does not come back unscathed. In the Carbonated Water chapter, we traced what happens to bicarbonate in a boiler. At boiler temperatures, bicarbonate thermally decomposes into carbonate, water, and carbon dioxide gas. The carbonate stays in the boiler. The carbon dioxide, being volatile, leaves with the steam.

When the steam condenses, so does the CO₂. And as we explored in the pH chapter, dissolved carbon dioxide forms carbonic acid:

CO₂ + H₂O ↔ H₂CO₃

In condensate systems with significant makeup water alkalinity, the resulting pH can drop to 4 or even 3. This is a devastating environment for the mild steel piping that constitutes most steam-condensate systems. The excess hydrogen ions attack the iron directly, producing the characteristic groove at the bottom of the pipe where cool condensate collects and pools.

Miles of pipe. Acidic water. Twenty-four hours a day.

One boiler treatment consultant put it perfectly: failure to protect the condensate is a recipe for returning every inch of your steam-condensate system back to the boiler in molecular form.

Amines: The Defense

The most common treatment for this low-pH condensate environment is the use of neutralizing amines. These volatile organic compounds are added to the feedwater or directly to the steam header. They volatilize with the steam, travel with it through the distribution system, and condense with the condensate. In solution, they hydrolyze to produce hydroxide ions, raising the pH and neutralizing the carbonic acid.

Different amines have different volatilities. Some condense quickly and protect the early portions of the steam system. Others travel farther before condensing and protect distant runs. For a campus with miles of steam tunnels, a blend of amines with varying volatilities is typically required to ensure adequate pH protection throughout the entire distribution system.

A newer class of chemistry, film-forming amines, takes a different approach. Rather than neutralizing acid in the bulk condensate, these compounds adsorb directly onto the metal surface, creating a hydrophobic barrier between the steel and the corrosive environment. Some products combine film-forming and neutralizing properties. The barrier approach can be effective in systems where traditional neutralization is insufficient or ineffective.

Steam Traps: The Separators

Steam traps are the gatekeepers of condensate return. They are mechanical valves that sense the difference between steam and liquid water, allowing condensate to pass while holding steam in the system.

When traps fail open, steam blows through continuously, wasting energy directly. When traps fail closed, condensate backs up in the steam line, causing water hammer and preventing return to the feedwater system. Both failure modes are common, both are expensive, and both are frequently undetected for months because traps are scattered across the facility in locations that nobody regularly inspects.

Steam trap audits are one of the highest-return maintenance activities in any steam plant. Many state utility programs offer rebates or funding for trap surveys and replacements. If you suspect trap failures at a customer site and cannot get traction on repairs, a third-party audit with documented energy savings is often the lever that moves the conversation.

\

The Perfect Storm

Everything that we’ve discussed up to this point came together earlier this year at a large customer site to create the perfect storm of water treatment mayhem.

The facility had four condensate receivers scattered across the plant, the largest at the far end of the building. This largest tank collected condensate from half the process load, but the pump to return it had just failed. And when the operators went to start the backup, they discovered it didn't work either. The customer was not bothered by this, and didn’t inform us of the issue. I discovered the issue when I was testing the feedwater at the deaerator – the conductivity had nearly quadrupled.

The feedwater conductivity at this site typically ran 81 µS/cm, with roughly 86% condensate return to the deaerator. That day, it tested at 322 µS/cm. Almost four times higher. I put the meter down, tested it again, and got the same number. I immediately walked to the operator board room to inquire if something had changed.

“Oh yeah, we’re losing some condensate but it’s not a big deal. We’re just using more makeup water,” the operator informed me.

How wrong they were.

The first problem was hardness breakthrough. The loss of condensate caused a surge in makeup water demand, which consumed all the salt in the brine tank. Under normal conditions, operators were accustomed to adding salt to the brine tanks once per week. The makeup surge had burned through a week's salt in days, and the brine tank was empty. The softener outlet tested at 135 ppm Total Hardness – the resin was exhausted and passing hardness straight through. Diluted only by what condensate remained, the water entering the boilers carried roughly 80 ppm. Eighty times the allowable feedwater limit.

The second problem was low cycles. The loss of low-conductivity condensate caused a spike in feedwater conductivity, forcing the blowdown controllers to dump water faster. Where the boilers normally operated at 42 cycles, they were now running at barely 10. Blowdown had more than quadrupled – from 380 to 1,635 pounds per hour of boiling water sent down the drain, replaced by cold city water that had to be softened, heated, and treated all over again.

The third problem was dissolved oxygen. The loss of condensate caused a surge in cold makeup water, overwhelming the steam supply to the deaerator, and reducing the feedwater temperature from 206°F to 150°F. At 150°F, the solubility of dissolved oxygen increased to roughly 4 mg/L. The temperature paradox was in full effect.

The fourth problem was chemical consumption. The extreme hardness in the feedwater rapidly consumed the available scale inhibitor, while the elevated oxygen demand overwhelmed the available sulfite scavenger. The boiler samples appeared milky-white, with a strong orange tint. The milky-white appearance was consistent with phosphate reacting with hardness to form a soft, non-adherent sludge. This was a good thing, but I knew it wouldn’t be enough to completely prevent calcium carbonate deposition on the boiler tubes. The strong orange tint, on the other hand, was evidence that the sulfite residual had been overwhelmed completely, and corrosion was occurring at an accelerated rate.

The fifth problem was condensate corrosion. The surge of makeup water brought significantly more alkalinity into the boiler. More bicarbonate decomposed to carbon dioxide – the CO₂ generated in the boiler nearly quintupled, from 11 to 53 mg/L. Condensate pH dropped from a controlled 8.5 to 6.9. Miles of mild steel piping were under acidic attack.

The sixth problem was efficiency. The surge of cold makeup meant the system had to buy back, with fuel, all the heat that used to come home for free in the condensate. And the calcium reaching the tubes would take its own toll. I estimated a conservative two-point efficiency penalty, roughly equivalent to the impact of a credit-card-thickness layer of scale. Together, these increased fuel demand from 20.1 to 22.2 MMBTU per hour. Two extra MMBTU, every hour, around the clock.

I walked past the operator boardroom and straight to the Facility Manager’s office.

“We’ve got a big problem.”

Using the site’s operating assumptions, I modeled the annualized cost of the upset. The fuel calculation included the heat required to replace lost hot condensate with cold makeup, the higher blowdown rate, and a conservative 2-point boiler-efficiency derate during the event. Under those assumptions, the fuel penalty alone was approximately $95,000 per year. Once additional water, oxygen scavenger, scale inhibitor, and neutralizing amine demand were included, the total annualized impact (including the fuel penalty) was approximately $284,000. The additional water consumption was estimated at over eight and a half million gallons per year.

The cost to replace both condensate pumps was less than $10,000.

They were repaired quickly.

Every failure in this story traces to a single broken link in the circuit. The pumps failed. Condensate stopped returning. And every other component (the softeners, the deaerator, the boiler chemistry, the condensate treatment) cascaded in sequence, each one’s failure amplifying the next.

The Complete Circuit

The boiler system is a circuit. Water enters through pretreatment, is deaerated and heated, is concentrated and boiled, delivers its energy as steam, condenses, and returns.

Every component exists because the previous one creates a problem that must be solved. Softeners exist because the boiler cannot tolerate hardness. Deaerators exist because hot water with oxygen destroys metal. Blowdown exists because the boiler concentrates everything it receives. Condensate treatment exists because the boiler’s own chemistry produces acid in the steam system.

And condensate return matters more than any single chemical we feed, because it determines the baseline quality of everything that follows.

When a new technician reports “sulfite was low so I turned up the pump,” they are treating a symptom. The circuit asks different questions. Is the deaerator running cold? Has condensate return dropped? Is makeup volume higher than normal? Is there a reason the oxygen load increased? When scale inhibitor tests at zero, the circuit asks: Is the softener working? Is the brine tank full? Is hardness leaking in through a process heat exchanger?

The chemical testing we perform helps identify symptoms.

The circuit reveals the true causes.

This is why we insist on seeing the boiler as a system. Not because it is a nice conceptual framework. Because the system behaves as a system, whether you understand it or not. And when one link breaks, the circuit tells you exactly what happened – if you know how to read it.

This is how we protect the system that makes the steam that heats the buildings that keep industrial civilization running. Not by managing chemicals, but by managing a circuit. The Engineering Notes that follow will give you the calculations to do it.

\

Engineering Notes: Heating Things Up

"If you are reading this straight through, you can skip this section and lose nothing essential to the story. These notes are for the operators, engineers, and technicians who need to do the math."

Why This Matters in the Field

Boiler water treatment is where small oversights become large invoices. An empty brine tank costs a tube replacement. A cold deaerator eats sulfite and accelerates corrosion. Lost condensate cascades through every link in the circuit simultaneously. The calculations in this section let you quantify the consequences so that when you walk into a facility manager’s office and say “we’ve got a big problem,” you have the numbers to prove it.

Core Tools & Constants

Cycles of Concentration (Boiler)

Cycles of Concentration ≈ $\frac{Boiler\ Conductivity}{Feedwater\ Conductivity}$

Note: The relationship between TDS and conductivity shifts with temperature and ionic composition. Boiler conductivity is typically measured on a cooled sample. Field conductivity meters should be verified against a calibrated lab instrument.

Feedwater and Boiler Water Guidelines

Simplified from ASME and industry consensus guidelines. Actual limits vary by boiler type and design. Always defer to OEM/insurer and steam purity requirements.

Oxygen Scavenger Stoichiometry: Sodium Sulfite

Reaction:

2 Na₂SO₃ + O₂ → 2 Na₂SO₄

Molar masses:

• Na₂SO₃ = 126 g/mol

• O₂ = 32 g/mol

Stoichiometry:

• 2 mol sulfite per 1 mol oxygen.

• Mass ratio: 2(126) / 32 = 252/32 = 7.88.

Therefore: 7.88 ppm sodium sulfite is required per 1 ppm dissolved oxygen on a stoichiometric basis.

In practice, we feed approximately 10 ppm sulfite per 1 ppm oxygen to maintain a measurable residual of 20–60 ppm in the boiler.

Condensate Energy Value

The energy value of returned condensate can be estimated by:

Q = m × C_p × ΔT

Where:

• m = mass flow (lb/hr)

• C_p = 1.0 BTU/lb·°F

• ΔT = condensate temperature minus cold makeup temperature.

Example:

A system returns 5,000 lb/hr of condensate at 180°F. Cold makeup is 55°F.

Energy saved per hour:

5,000 lb/hr × 1.0 BTU/lb·°F × (180°F − 55°F) = 625,000 BTU/hr

625,000 BTU/hr × 8,760 hr/yr = 5,475,000,000 BTU/yr, or 5,475 MMBTU/yr

Now calculate the actual energy requirement for a boiler that is 80% efficient.

This is the step that can be confusing: 80% boiler efficiency means that for every BTU of useful heat delivered to the water, you burn 1.25 BTU of fuel. So the fuel energy you’ve actually displaced is larger than the heat recovered:

$\frac{5,475\ MMBTU/yr}{0.8}$ =6,844 MMBTU of fuel saved per year

At natural gas cost of $10/MMBTU:

Annual savings = 6,844 MMBTU/yr × $10/MMBTU = ~$68,400/yr

This is the energy value alone. It does not include the water cost, sewer cost, or chemical cost.

Blowdown and Fuel Penalty

The previous calculation measured what condensate return puts back into the system. This one measures what blowdown takes out. Together, they define the fuel cost of operating a boiler at a given set of conditions.

The energy lost with blowdown can be estimated from the sensible heat carried by the discharged water:

Heat loss (BTU/hr) = BD (lb/hr) × C_p (BTU/lb·°F) × ΔT (°F)

Where:

• BD = blowdown rate, in lb/hr

• C_p = specific heat of water, approximately 1.0 BTU/lb·°F

• ΔT = blowdown water temperature minus makeup water temperature, in °F

To convert that heat loss into required fuel input:

Fuel input required (BTU/hr) = $\frac{Heat\ Loss\ (\frac{BTU}{hr})}{Boiler\ Efficiency}$

To convert fuel input into operating cost:

Fuel cost ($/hr) = $(\frac{Fuel\ input\ required\ \left( \frac{BTU}{hr} \right)}{1,000,000\ \left( \frac{BTU}{MMBTU} \right)})$ × Fuel cost ($/MMBTU)

Combined:

Fuel cost ($/hr) = $\left( \frac{BD\ \ \times \ Cp\ \times \ \Delta T}{Boiler\ Efficiency\ \ \times \ 1,000,000\ } \right)$ × Fuel cost ($/MMBTU)

Example: A boiler blows down 1,000 lb/hr:

• Blowdown leaves at 212°F.

• Makeup enters at 60°F.

• Boiler efficiency = 80%.

• Fuel cost = $10/MMBTU.

Step 1: Heat loss

BD (lb/hr) × C_p (BTU/lb·°F) × ΔT (°F) = 1,000 × 1.0 × (212 − 60) = 152,000 BTU/hr

Step 2: Fuel input required

$\frac{Heat\ Loss}{Boiler\ Efficiency}$ = $\frac{152,000}{0.8}$ = 190,000 BTU/hr

Step 3: Fuel cost

$(\frac{Fuel\ input\ required\ }{1,000,000\ })$ × Fuel cost = $(\frac{190,000\ }{1,000,000\ })$ × $10 = $1.90/hr

Step 4: Annual Fuel cost, at 8,760 hr/year operating hours:

Fuel Cost × Operating Hours = $1.90 × 8,760 = $16,644/yr

That is the fuel penalty alone. It does not include the water, sewer, or chemical cost of the blowdown. This is why unnecessarily low boiler cycles are expensive: every extra pound of blowdown throws away already-heated water that must be replaced and reheated.

Sensor Verification

The golden rule: never trust a sensor you have not tested against a calibrated handheld meter.

• Calibration: adjusting the sensor output to match a known standard.

• Validation: checking the sensor reading against a fresh grab sample measured independently.

Conductivity controllers on blowdown systems are the most critical sensors in boiler water treatment. If they read low, the blowdown valve stays closed. Cycles skyrocket. Scale, carryover, and foaming risk increase silently. Always validate controller readings against a handheld meter on every visit.
