The Pillars of Water Treatment

From Parts to Patterns

Most people enter water treatment by learning fragments.

We memorize scale inhibitor dosages. We learn how to adjust pump strokes. We are taught what "high cycles" means in a cooling tower. We navigate corrosion coupons, drifting controllers, blowdown valves, biocide rotations, and the 2 a.m. panic that comes when a chiller shuts down and operations wants answers immediately.

There is, admittedly, an endless amount to learn.

But the goal is to move past fragments, because the systems we treat are not governed by isolated numbers on a service report. They are networks of movement: water entering, heat leaving, solids concentrating, gas escaping, chemistry reacting, biology adapting, metal dissolving. Problems do not appear because a single number drifted. They appear because the balance of the system changed.

When iron rises, metal is corroding somewhere or the makeup has changed. When pH falls, acidity is being introduced or buffers are being consumed. When solids increase, they are entering, being generated, or failing to leave. Water does not make these decisions on its own. There’s no mysterious force driving it. The foundations of water treatment have been paved for generations, and they are built upon immutable physical laws. Certain problems may obscure themselves from clear mechanical motives, but they emerge from the same underlying consistency that governs all natural systems.

The Four Pillars give us the recurring failure modes.

Mass Balance gives us an accounting system.

Free Body Diagrams are the field tool that put both to work.

The Four Pillars

Every industrial water system lives under the influence of four recurring forces. They are always present. They never sleep. And they do not negotiate.

Together, they form the Four Pillars of Water Treatment.

Corrosion: The Thief

Corrosion is the slow theft of metal: electrochemistry converting engineered strength back into oxides. It begins quietly, often beneath films and deposits, and it feels sudden only when the system finally fails.

Scale: The Insulator

Scale is dissolved minerals returning to solids. It rarely announces itself loudly, but whispers through rising approach temperatures, declining capacity, and equipment that runs worse for no obvious reason.

Microbiological Growth: The Living Threat

Biology is water inviting life inside. It builds shelter, alters local chemistry, consumes oxidants, and persists because living systems adapt under pressure.

Suspended Solids: The Amplifier

Suspended solids rarely cause failure by themselves. They amplify everything else. They steal access to surfaces, shelter biology, create oxygen differentials, seed deposits, and turn manageable chemistry into localized damage.

You’ve already met each pillar in isolation. This chapter is about what happens when they collide, and how to think clearly when they do.

Connected Failure Modes

The pillars are not separate boxes. They are coupled by physical, chemical, and biological pathways that run in both directions. When you understand those couplings, symptoms begin to sort themselves into causes.

Scale and Corrosion

A thin, adherent mineral film can sometimes reduce direct metal exposure and limit corrosion. A thick, insulating scale deposit does the opposite: it creates hot spots, concentrates chemistry, and builds occluded zones where oxygen availability changes from one location to another. That is fertile ground for localized corrosion.

Corrosion also feeds scale. Iron oxides and roughened surfaces provide excellent nucleation sites for mineral precipitation. The result is a feedback loop: scale deposits promote corrosion, corrosion products promote more deposition.

Biology and Corrosion

Biofilms are not passive slime. They are organized shelter. They create anaerobic microenvironments, trap nutrients, and allow organisms such as sulfate-reducing bacteria to generate corrosive byproducts. That is one path into microbiologically influenced corrosion.

Corrosion products return the favor. Tubercles and roughened surfaces provide structure, protection, and attachment points. A corroded surface is easier to colonize than a clean one.

Biology and Scale

Biofilm changes the surface. It insulates heat transfer, alters local pH and chemistry, and traps ions in extracellular polymeric substance. Those local changes can push a surface toward precipitation even when the bulk water looks manageable.

Scale returns the favor by providing rigid shelter. Once a hard mineral deposit forms over biological material, oxidants struggle to reach what is underneath.

Solids and Everything

Suspended solids are the universal amplifier. They settle in low-flow zones, shield surfaces, intensify oxygen differentials, trap nutrients, and provide a scaffold for both scale and biology. A dirty system makes every other problem easier to start and harder to stop.

That is why “good chemistry” so often fails in dirty equipment. The chemistry may be fine in the bulk water. The surface environment is not.

Mass Balance

A mass balance is the foundation of systems thinking.

It applies the Law of Conservation of Mass to real systems: matter is neither created nor destroyed, only rearranged. It treats the system as a boundary. Across that boundary, mass flows in and mass flows out. Whatever accumulates inside is the difference between the two.

If something is high, it either entered, failed to leave, or changed form inside the boundary. Water has to come from somewhere. Dissolved solids have to come from somewhere. Oxygen has to come from somewhere, and it has to go somewhere too.

Mass balance makes even dynamic systems figure-out-able by forcing four questions:

1. What enters?

2. What leaves?
3. What accumulates?

4. What changes form?

In order to answer these questions, it is common to use a weighted average. When two streams combine, the resulting temperature, conductivity, dissolved oxygen, etc. is the flow-weighted average of the two inputs.

Formula:

Result = (Q₁ × C₁ + Q₂ × C₂) ÷ (Q₁ + Q₂)

Where: Q = flow rate, C = the property being calculated (temperature, conductivity, DO, etc.)

Free Body Diagrams

A free body diagram puts those questions to work. Its purpose is not to make the system more abstract. The purpose is to make the system traceable.

For any component (condenser tube, tower basin, heat exchanger, branch line, deaerator, boiler drum) the free body diagram asks you to stop staring at the symptom and start accounting for the system.

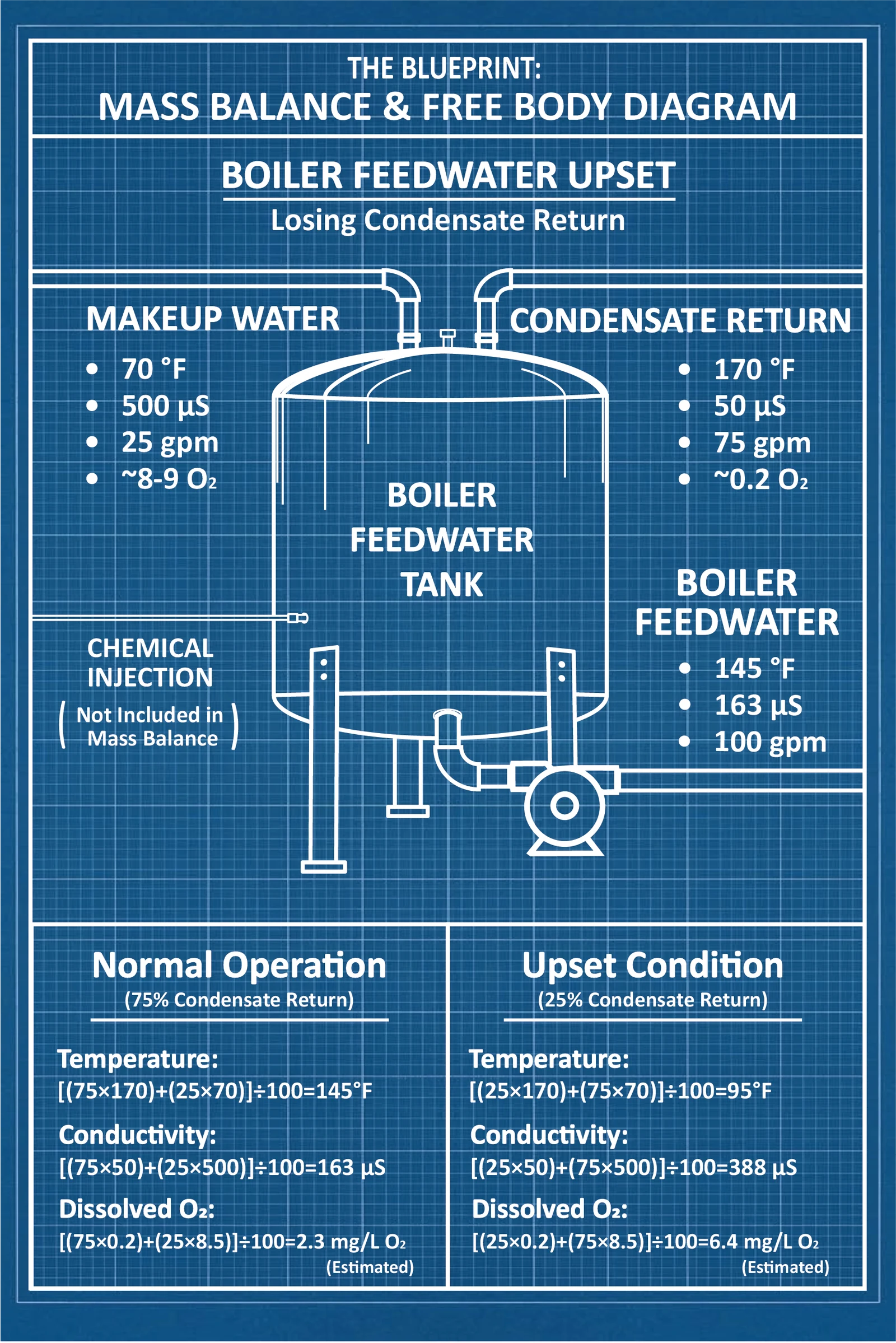

Example: Boiler Feedwater Conductivity Is High

A fairly standard field complaint goes something like this:

“I don’t know why, but the boiler feedwater conductivity is suddenly high. I’m also not getting any sulfite residual in the boiler. I’ve turned up the pump, but I’m still not getting any.”

This is where we need to shift to system thinking.

Turning up the sulfite pump is a symptom-first reaction. It's understandable, but it does not address the underlying question: what changed in the balance of the system that made this symptom inevitable?

That is where a free body diagram begins. Not with a lever. With the four questions.

1. What enters the feedwater tank?

In most cases, atmospheric feedwater tanks receive only two meaningful water input streams: makeup water and condensate return. Condensate return typically arrives hot and clean: low dissolved solids, high heat content. Makeup water arrives cold and relatively concentrated: softened to remove hardness, but still carrying dissolved minerals.

The mixed feedwater conditions are determined by the temperature, conductivity, dissolved oxygen, and flow rate of these two streams. The blueprint for this chapter shows an example of a free body diagram for this theoretical system.

2. What leaves the feedwater tank?

Boiler feedwater exits the tank at a flow rate equal to the combined inputs. It carries the dissolved minerals and heat of the mixed streams into the boiler.

Under normal operation (75% condensate return) the math is straightforward:

Feedwater Flow: (Q_CR+Q_MU) = (75+25) = 100 gpm

Temperature: (Q_CR×T_CR+Q_MU×T_MU)÷Q_FW = (75×170+25×70)÷100 = 145°F

Conductivity: (Q_CR×C_CR+Q_MU ×C_MU)÷Q_FW = (75×50+25×500)÷100 = 163 µS

Dissolved oxygen: (Q_CR×DO_CR+Q_MU×DO_MU)÷Q_FW = (75×0.2+25×8.5)÷100 =~2.3 mg/L

3. What accumulates inside the feedwater tank?

In a properly operating feedwater tank, nothing significant accumulates. There is no evaporative cycling, no further concentration of minerals.

4. What changes form inside the feedwater tank?

Here is part of the answer to the technician’s question. Sulfite fed to the feedwater tank reacts with dissolved oxygen: SO₃²⁻ + ½O₂ → SO₄²⁻. Residual sulfite is consumed in the reaction to produce sulfate. If the oxygen load increases, sulfite demand increases with it; and if the feed rate hasn’t changed, the residual disappears.

Now apply the mass balance to the upset condition: condensate return collapsed to 25%.

Feedwater Flow: (Q_CR+Q_MU) = (25+75) = 100 gpm → same flow rate

Temperature: (25 × 170 + 75 × 70) ÷ 100 = 95°F → ∆T = -50°F

Conductivity: (25 × 50 + 75 × 500) ÷ 100 = 388 µS → ∆C = 225 µS

Dissolved oxygen: (25 × 0.2 + 75 × 8.5) ÷ 100 = ~6.4 mg/L → ∆DO = 4.1 mg/L

Under these conditions there is nearly three times the oxygen load on the sulfite program. Conductivity more than doubled. Feedwater temperature dropped 50°F.

The technician wasn’t facing a chemical problem. They were facing a water balance problem that expressed itself as three simultaneously chemical symptoms. The sulfite was doing what it is designed to do, but the conditions changed.

That is the mass balance payoff. The system was figure-out-able from the change in inputs alone, before touching a single chemical feed pump.

The Most Common Diagnostic Error

The most common error in water treatment is not bad chemistry. It is mistaking the signal for the source.

When something is off, there’s a temptation to jump directly into the obvious mechanism: the pump’s not working, the chemical isn’t doing its job, the biocide is old, the controller is wonky, the system’s never run right.

But a cooling tower can develop biofilm because scale allowed it to. A closed loop can corrode because it's leaking at an expansion tank. A boiler can show high conductivity because condensate return collapsed, and it can test at zero sulfite because the oxygen load tripled.

Symptoms are real, but they’re rarely first.

And this is why the free body diagram matters. It forces you to walk upstream through the facility instead of reacting to the most visible feature. The four pillars are not enemies to be defeated one at a time, they are recurring expressions of broken balance. And a broken balance always has a source.

Worked Cascade: pH Drift in a Cooling Tower

Suppose acid feed fails or CO₂ stripping outpaces the control response. The pH rises from 8 to 8.8. That single drift changes several things at once.

Carbonate equilibrium shifts toward CO₃²⁻, increasing calcium carbonate supersaturation. The LSI shifts positive. Scaling pressure on heat-transfer surfaces rises.

General corrosion rates on mild steel decrease. The hydroxide environment favors passive film stability. But if a phosphate-based inhibitor is in use, higher pH increases the risk of calcium phosphate precipitation, fouling surfaces and reducing inhibitor effectiveness.

Biocide efficacy changes too. Free chlorine shifts towards hypochlorite ion, weakening the oxidizing species available for biological control. Biological pressure increases without any change in feed rate.

And as surfaces foul from the increased chemical and biological demands, suspended solids become more likely to accumulate and amplify the cycle further.

What looked like just a pH problem has quickly become a scale problem, a bio-control problem, a solids problem, and potentially an under-deposit corrosion problem if the underlying issue is not managed.

Four simultaneous consequences. All traceable through disciplined system thinking: what entered, what changed form, what accumulated, and how the pillars interacted before the symptoms compounded.

So What Do We Actually Do?

When people ask what I do for a living, I usually hesitate. Not because I’m unsure, but because I know what’s coming next.

“I work in industrial water treatment,” I’ll say.

They nod politely. “So… like drinking water?”

Their confusion makes sense. Even my parents aren’t entirely sure what I do. They know it involves chemistry. They know it involves water. They know it sometimes involves boilers or cooling towers. Beyond that, my day to day is an absolute mystery.

Most people never think about cooling unless it fails. Most people never think about steam until it disappears. The systems we protect are invisible by design; buried in mechanical rooms, hidden behind locked doors, running continuously while the building above goes about its business.

But here is what we actually do.

We manage the balance between four forces that are constantly trying to destroy the systems that move heat through the built environment. We keep metal from returning to rust. We keep minerals from returning to stone. We keep organisms from building cities on surfaces that need to stay clean. And we keep dirt from amplifying all of it.

We do this by understanding the physics, chemistry, and biology of water. Then tracing what enters, what leaves, what accumulates, and what changes. Only then do we decide where intervention will do the most good.

This is what the previous ten chapters have prepared you for. The chapters that follow will put that discipline into practice.

Engineering Notes: The Pillars of Water Treatment

"If you are reading this straight through, you can skip this section and lose nothing essential to the story. These notes are for the operators, engineers, and technicians who need to do the math."

Why This Matters in the Field

Water treatment failures can be prevented by asking four diagnostic questions about a system:

1. What enters?
   Water, heat, dissolved species, suspended matter, gases, treatment chemistry, biological load.

2. *What leaves?* Water at changed conditions, heat, blowdown, steam, leaks, corrosion products, biomass, gases, solids.

3. What accumulates?
   Deposits, sludge, biofilm, stagnant volume, corrosion products, concentrated dissolved species, retained heat.

4. What changes form?

Examples: calcium bicarbonate to calcium carbonate scale. Sulfite to sulfate. Dissolved oxygen to corrosion current. Planktonic cells to surface biofilm. Bicarbonate to carbon dioxide. Soluble iron to insoluble iron oxide.

Bulk Water versus Surface Conditions

This is one of the most important technical distinctions in the chapter.

Most water tests describe the bulk water.
Most failures happen at the surface.

Examples:

• Bulk pH may look acceptable while tube skin temperature drives local CaCO₃ precipitation.

• Bulk biocide residual may be present while the inside of a biofilm remains chemically protected.

A system can look chemically acceptable on paper and still fail badly at the surface. So every free body diagram should include a separate question: What is likely happening at the surface that the bulk water does not reveal?

Pillar Interaction Matrix

Common Diagnostic Cascades

When multiple symptoms appear simultaneously, the mass balance and free body diagram helps identify whether they share a root cause. The most common cascades:

1. Lost Blowdown Control

Controller fails → cycles climb → dissolved species concentrate → LSI rises → scale forms on condenser surfaces → condenser approach increases → chiller efficiency drops. Simultaneous effect: higher TDS may increase corrosion risk, while concentrated organics can increase biocide demand.

2. Biocide Pump Failure

Biocide drops to zero → planktonic bacteria multiply → biofilm begins establishing on surfaces → biofilm insulates heat transfer → biofilm shelters corrosion → oxidant demand rises even after biocide is restored

3. Sidestream Filter Bypass

Solids accumulate in basin → particles distribute through system → deposits form on low-flow surfaces → under-deposit corrosion initiates → corrosion products generate more solids → biology colonizes deposits → biocide demand rises → chemistry appears to fail

4. pH Drift High (Cooling Tower)

CO₂ stripping or acid feed failure → pH rises → CaCO₃ supersaturation increases → HOCl shifts to OCl⁻ → calcium phosphate may precipitate if phosphate is present → scale + bio + solids problems intensify

5. Lost Condensate Return (Boiler)

Condensate pumps fail → cold makeup fraction rises → feedwater temperature drops → dissolved oxygen load rises → sulfite demand rises → conductivity rises → the boiler system is stressed

6. Lost Condensate Quality, Not Just Quantity (Boiler)

Condensate contamination (process leak, tube failure) → hardness enters boiler → deposits on heat-transfer surfaces → scale promotes under-deposit corrosion → boiler efficiency drops → if contamination is severe, boiler blowdown spikes → alkalinity imbalances follow

Mass Balance Calculations

1. Weighted Average: Mixed Input Streams

When two streams combine, the resulting temperature, conductivity, or dissolved oxygen is the flow-weighted average of the two inputs. This is the calculation behind the boiler feedwater example in the chapter.

Formula:

Result = (Q₁ × C₁ + Q₂ × C₂) ÷ (Q₁ + Q₂)

Where:

• Q = flow rate

• C = the property being calculated (temperature, conductivity, DO, etc.)

Example: Normal Operation (75% condensate return)

2. Cycles of Concentration: What Leaves Determines What Stays

In a cooling tower, pure water leaves as evaporation. Dissolved solids do not. They stay behind and concentrate. Cycles of concentration (COC) describes how much more concentrated the tower water is compared to the makeup.

Formula:

COC = $\frac{Conductivity\ of\ tower\ water}{Conductivity\ of\ makeup\ water}$

Or equivalently:

COC = $\frac{Makeup\ rate}{Blowdown\ rate}$

Example: Makeup conductivity = 400 µS, Tower conductivity = 1,600 µS

COC = $\frac{1,600}{400}$ = 4 cycles

At 4 cycles, dissolved species in the makeup (calcium, alkalinity, chloride, sulfate) are present at approximately four times their makeup concentration in the cooling tower water.

Scaling consequence:

If makeup calcium = 80 mg/L as CaCO₃, tower calcium at 4 COC = 320 mg/L as CaCO₃. If COC drifts to 6 due to blowdown failure: tower calcium = 480 mg/L as CaCO₃.

That 50% increase in calcium concentration, from one control failure, is the difference between a manageable LSI and an aggressive scaling condition. The chemistry didn't change. The balance changed.

3. Chemical Demand: What Changes Form Inside the System

When dissolved oxygen load increases, sulfite demand increases proportionally. When COC rises, inhibitor demand rises proportionally. These are not mysterious consumption events. They are form-change consequences of a shifted mass balance.

Example: Sulfite demand from dissolved oxygen

Sulfite Requirement (stoichiometric ratio): ~7.9 mg sulfite consumed per 1 mg dissolved O₂

Sulfite demand (mg/L) = DO (mg/L) × 7.9

Using the example from the chapter:

Sulfite demand from Dissolved Oxygen increase:

Nearly three times the sulfite demand, from the same root cause that raised conductivity and dropped temperature. The technician who turns up the sulfite pump without running this calculation may get a residual back temporarily, but hasn't solved anything.

Inhibitor demand from COC increase:

If a program targets 20 mg/L inhibitor residual at 4 COC, and COC climbs to 6, the tower volume now contains 50% more dissolved species competing for treatment surface area. Inhibitor demand rises accordingly, even if no other variable changed.

Free Body Diagram: Field Guide

A field free body diagram does not need to be pretty. It only needs to be complete. For each component, define the following:

1. Boundary

What exactly are you analyzing?

• Tower basin

• Condenser tube bundle

• Feedwater tank

• Deaerator

• Boiler drum

• Branch dead leg

2. Inputs

List all entering streams and conditions:

• Flow

• Temperature

• Pressure

• pH

• Conductivity

• Inhibitor residual

• Oxidant residual

• Hardness, alkalinity, silica, chloride, sulfate

• Suspended solids

• Dissolved oxygen

• Microbiological load

3. Outputs

List all exiting streams and conditions:

• Flow out

• Blowdown

• Evaporation

• Steam

• Return flow

• Leaks

• Vented gases

• Solids removed by filtration

• Heat rejected or absorbed

Use the weighted mass balance to determine what, if anything, is accumulating in the system.

4. Internal Accumulation

Ask what is being stored inside the boundary:

• Scale

• Sludge

• Biofilm

• Corrosion products

• Stagnant water

• Concentrated dissolved solids

If accumulation cannot account for the mass balance, identify possible transformations.

5. Transformations

Ask what reactions or phase changes are occurring:

• Oxidation-reduction

• Acid-base shifts

• Precipitation

• Gas stripping

• Evaporation

• Biological growth

• Inhibitor consumption

If transformation is occurring, identify which pillars might be contributing.

6. Pillar Analysis

Ask which pillar is primary, and which may be secondary or symptomatic:

• Corrosion

• Scale

• Biological growth

• Suspended solids
